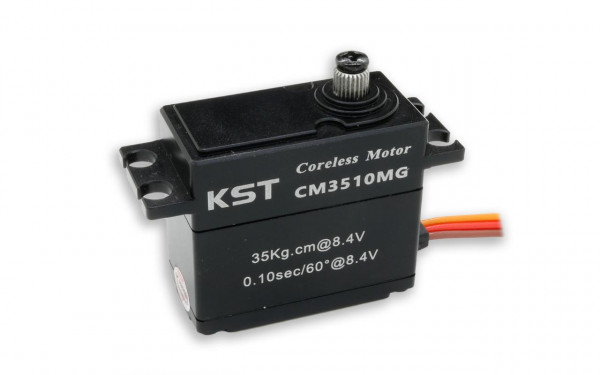

Produktinformationen “CM3510MG V6.0 35kgf.cm@8,4V”
CM3510MG V6.0
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Stalling Torque: 20Kgf.cm@4.8V
25Kgf.cm@6.0V
30Kgf.cm@7.4V
35Kgf.cm@8.4V
Speed: 0.20sec/60°@4.8V
0.15sec/60°@6.0V
0.13sec/60°@7.4V
0.10sec/60°@8.4V
Start Current: 2.10A@4.8V
2.90A@6.0V
3.30A@7.4V
3.65A@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10?……+65?
Soft Start: Programmable
Motor Type: Coreless DC Motor
Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP65
Case Dimensions: 40.5mm*20mm*38mm±0.2mm
Weight: 70g±10%
